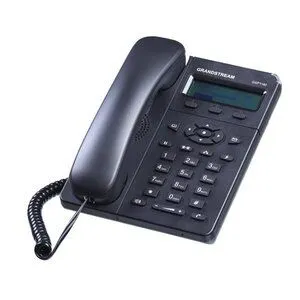

Grandstream GXP1165 Dubai

Grandstream GXP1165

The Grandstream GXP1165 Dubai is a next-gen small-to-medium business IP phone that has single SIP account, up to 2 call appearances, a 128×40 graphical LCD, XML programmable context-sensitive soft keys, dual network ports with integrated PoE, 3-way conference, and Electronic Hook Switch (EHS) with Plantronics headsets.
The GXP1165 Dubai delivers superior audio quality, rich and industry leading telephony features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with many 3rd party SIP devices and leading SIP/NGN/IMS platforms. It is a perfect option for small-to-medium businesses searching for a top quality, feature rich IP phone with highly affordable cost.
  • 128×40 pixel graphical LCD display
  • Power Supply Included
  • Phonebook with up to 500 contacts and call history with up to 200 records
  • Single SIP account, up to 2 call appearances, 3 XML programmable context-sensitive soft keys, 3-way conference
  • Dual switched auto-sensing 10/100Mbps network ports with integrated PoE
  • Automated personal information service (e.g., local weather), personalized music ring tone/ring back tone
  • Automated provisioning using TR-069 or AES encrypted XML configuration file, SRTP and TLS for advanced security protection, 802.1x for media access control

Description

Grandstream GXP1165 Dubai Specification

Protocols / Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, , TFTP, NTP, STUN, SIMPLE, TR-069, 802.1x, IPv6
Network Interfaces Dual switched 10/100Mbps ports, integrated PoE (GXP1165 only)
Graphic Display 128×40 graphical LCD display
Voice Codec Support for G.723.1, G.729A/B, G.711µ/a, G.726-32, G.722 (wide-band), iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Telephony Features Hold, transfer, forward, 3-way conference, downloadable phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones, server redundancy and fail-over
Sample Applications Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, news, weather, stock, Internet radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, alarm clock, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development.
Headset Jack RJ9, supporting Electronic Hook Switch (EHS) with Plantronics headsets
Base Stand Yes, 1 angle position available
Wall Mountable Yes
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES encrypted configuration file, SRTP, TLS, 802.1x media access control
Multi-Language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese, etc.
Upgrade / Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
Power and Green Energy Efficiency Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: +5VDC, 800mA Integrated Power-over-Ethernet (802.3af,GXP1165 only) Max power consumption 2.5W (universal power adapter) or 3W (PoE)
