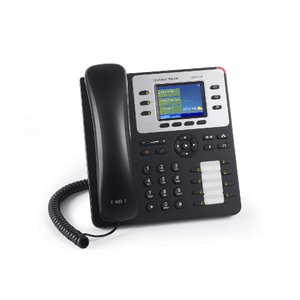

Grandstream GXP2130 Dubai

Grandstream GXP2130

The Linux-based GRANDSTREAM GXP2130  Dubaiv is a standard enterprise-grade IP phone that features up to 3 lines, 4 XML programmable soft keys, 8 programmable BLF extension keys, dual Gigabit network ports, and 4-way voice conferencing. A 2.8 inch color LCD screen and HD audio allow for a crisp display and high quality calls. The GXP2130 v2 comes equipped with Blueooth, Electronic Hook Switch (EHS) support for Plantronics headsets to allow for flexibility. The phone also comes pre-loaded with weather and currency exchange apps. Ideal for SMBs, enterprises and SOHOs, the GXP2130 v2 is the perfect choice for users looking for a high quality, feature rich IP phone with advanced functionality that is simple to use.
  • 320×240 TFT color LCD
  • 3 dual-color line keys (with 3 SIP accounts), 4 programmable context- sensitive soft keys, up to 4-way conferencing, and 8 dual-color BLF extension keys
  • Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports, PoE, EHS (Electronic Hook-Switch) with Plantronics headsets
  • Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
  • Integrated real-time web applications [weather, currency, etc.]

Description

Grandstream GXP2130 Dubai

The Grandstream GXP2130 Dubai VoIP phone is an ideal addition for busy office environments. The dual port Gigabit capability allows for quick call handling and quick switching between applications on the 2.8″ TFT color screen. The HD audio quality from this Corded VoIP Phone makes for superior sound whether the call is taken on the handset, speaker phone, or–as the Grandstream GXP2130 has integrated Electronic Hook-Switch with Plantronics–from a Plantronics headset.The Grandstream GXP2130 Dubai has 4 XML programmable context-sensitive keys, 8 programmable BLF extension keys, 4-way voice conferencing. Integrated PoE, desk or wall mount support, and automated provisioning makes this GXP2100 series phone an affordable option for easy deployment in businesses of any size.



Grandstream GXP2130 Features and Functions

  • 320 x 240 TFT color LCD screen
  • 3 Dual-Color line keys
  • 4 programmable context-sensitive soft keys
  • Up to 4-way conferencing
  • 8 Dual-Color BLF extension keys
  • Dual switched auto-sensing Gigabit network ports, POE
  • Electronic Hook-Switch (EHS) with Plantronics Headsets
  • Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
  • Integrated real-time web applications (weather, currency, etc.)
  • Built-in Bluetooth Feature Now Available



Grandstream GXP2130 Specification

Protocols / Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Networking Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display 2.8 inch (320×240) TFT color LCD
Voice Codec Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), and iLBC, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO)
Telephony Features Hold, transfer, forward, 4-way audio conference, call park, call pickup, shared-call-appearance (SCA) bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications Weather, currency, GMI available for advanced custom application development
HD Audio Yes, both on handset and speakerphone
Base Stand Yes, allow 2 angle positions
Wall Mountable Yes
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese,
Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
Upgrade and Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power and Green Energy Universal power adapter included: Input: 100-240V; Output: +12V, 1A; Integrated Power-over-Ethernet (802.3af),Max power consumption 18W (power adapter) or 25.5W (PoE)
Physical Dimension: 193mm W x 211mm L x 84.5mm H; UUnit weight: 0.78kg; Package weight: 1.3kg
Temperature and Humidity 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
Package Content GXP2130 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
Compliance FCC Part15 Class B, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1,AS/NZS CISPR22 Class B
