YEALINK EXP40



YEALINK EXP40

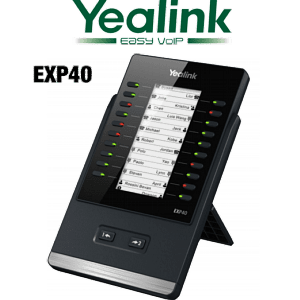

The EXP40 Expansion Module for the SIP-T46G and SIP-T48G expands the functional capability of your SIP phone to a whole new level. The EXP40 features a large graphic LCD with two pages of 20 flexible buttons, which can be programmed with up to 40 various features including BLF/BLA, speed dialing, call forwarding, transfer, park, pickup.
  • Revolutionarily new design
  • Expandability
  • A rich visual experience for applications
Category:

Description

YEALINK EXP40

The Yealink EXP40 expansion module extends the use of your Yealink phone system to program up to 40 additional various features. Compatible with Yealink T46G and Yealink T48G, the EXP40 has 20 programmable keys marked with a dual-color LED indication light and 2 independent control keys for page switching.The Yealink EXP40 connects to the compatible Yealink phone via an RJ-12 cable and can be powered by the phone for up to (2) EXP40 units. For powering 3-6 units, a power adapter (AC 100~240V input and DC 5V/1.2A output) will be required.

YEALINK EXP40 Features and Functions

  • Rich visual experience with 160×320 graphic LCD
  • 20 physical keys each with a dual-color LED
  • 2 independent control keys are used for fast switch pages
  • Daisy-chain 6 modules up to 120 keys
  • Stand with 2 adjustable angles and wall mountable

YEALINK EXP40 Specification

Display
  • 160×320 graphic LCD with 16-level grayscales
  • LCD Backlight
  • Two page views are possible
  • Different icons for each function shown on the LCD
Features Keys and Indicator
  • 20 physical keys each with a dual-color LED
  • 20 additional keys through page switch
  • 2 independent control keys are used for fast switch pages
  • Programmable for functions such as Shared Line, BLF List, BroadSoft Group, Call Park, Conference, Forward, Group pickup Group listening, LDAP, Pick UP, and XML Browser
Physical Feature
  • Wall mountable
  • Stand with 2 adjustable angles
  • Up to two Expansion modules are powered by the host phone
  • Supports up to 6 modules daisy-chain
  • 2xRJ12 (6P6C) ports for data in and out
  • Dimension (W*D*H*T): 127mm*213mm*167mm*45mm
  • Applies to Yealink IP Phone
  • Operating temperature: -10~50°C
  • Operating humidity: 10-95%
Physical Feature
  • Qty/CTN: 10 PCS
  • N.W/CTN: 6.7 kg
  • G.W/CTN: 7.6 kg
  • Giftbox size: 237mm*154mm*100mm
  • Carton Meas: 520mm*317mm*247mm
