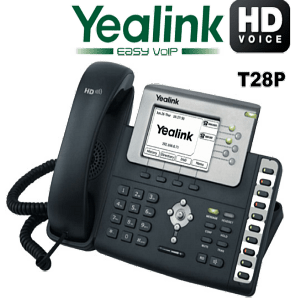

YEALINK T28P



YEALINK T28P

The Yealink SIP T28P (6 Line, PoE – HD Phone) is a 6 Line Business Phone designed for the business user who needs rich telephony features, friendly UI and superb voice quality.
  • TI TITAN chipset and TI voice engine
  • 320×160 graphic LCD with 4-level grayscales
  • 6 VoIP accounts, Broadsoft validated
  • HD Voice: HD Codec, HD Handset, HD Speaker
Category:

Description

YEALINK T28P

The Yealink T28P represents the next generation of VoIP phones which are designed for the business user who needs rich telephony features, friendly UI and superior voice quality. The T28P is equipped with the TI TITAN chipset, offers high definition voice quality through TI voice engine, HD handset, HD speaker and HD codec (G.722).With a large, high-resolution graphical display and 48 keys, this particular addition to the SIP-T2 series offers an excellent user experience to configure, make calls, express XML browser, etc. Moreover, to avoid problems with unwanted violations of your audio data, the Yealink T28P supports the security standards TLS, SRTP, HTTPS, 802.1x, Open VPN and AES encryption which are necessary to protect against electronic eavesdropping and data theft.



YEALINK T28P Features and Functions

  • 6 Line Appearances
  • Dual-port 10/100 Ethernet
  • Yealink Optima HD Voice Supported
  • Up to 6 SIP accounts
  • Full-duplex hands-free speakerphone
  • Supports Yealink EXP39/EXP38 expansion modules
  • RJ9 Headset Port
  • 320×160 graphic LCD with 4-level grayscales



YEALINK T28P Specification

Phone Features
  • 6 VoIP accounts, hotline, emergency call
  • Call waiting, call transfer, call forward
  • Hold, mute, flash, auto-answer, redial
  • 3-way conference, DND, speed dial
  • XML Phonebook search/import/export
  • Black list, call history (100 entries)
  • Volume adjustment, ring tone selection
  • Tone scheme, System log
  • Multi-language (more than 20)
  • Supports up to 6 expansion modules
IP PBX System Integration
  • Dial plan, dial-now
  • SMS, Voicemail, MWI
  • BLF/BLA, intercom, paging
  • Call park, call pickup
  • Distinctive ringtone
Codecs and Voice Features
  • Wideband codec: G.722
  • Narrowband codec: G.711, G.723.1, G.726, G.729AB
  • VAD, CNG, AEC, PLC, AJB, AGC
  • Full-duplex speakerphone with AEC
Network Features
  • SIP v1 (RFC2543), v2 (RFC3261)
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info
  • Proxy mode and peer-to-peer SIP link mode
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/router mode
  • TFTP/DHCP/PPPoE client
  • Telnet/HTTP/HTTPS server
  • DNS client
  • NAT/DHCP server
Management
  • FTP/TFTP/HTTP/PnP auto-provision
  • Configuration: browser/phone/auto-provision
  • Direct IP call without SIP proxy
  • Dial number via SIP server
  • Dial URL via SIP server
Security
  • HTTPS (server/client)
  • SRTP (RFC3711)
  • Transport Layer Security (TLS)
  • VLAN (802.1 pq), QoS
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection
  • Admin/user configuration mode
Physical Features
  • TI TITAN Chipset
  • 320×160 graphic LCD with 4-level grayscales
  • 48 keys including 16 programmable keys
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • 2xRJ45 10/100M Ethernet ports
  • 1XRJ12 (6P6C) expansion module port
  • Power adapter: AC 100~240V input and DC 5V/1.2A output
  • Power over Ethernet (IEEE 802.3af)
  • Power consumption: 1.6-2.6W
  • Net weight: 1.05KG
  • Dimension: 273x204x42MM
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C
