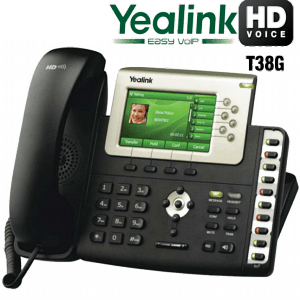

YEALINK T38G



YEALINK T38G

The SIP-T38G Series IP Phone is one of Yealink’s most recent innovations for managers with demanding integrated communication needs. It has been designed as a future-proofed infrastructure investment that provides a seamless migration to modern GigE-based networks. Dual-port Gigabit Ethernet connections ensure flexible installation options and lower cabling costs. With its large, high-resolution TFT color display, the T38G IP Phone offers a brilliant presentation of caller information, with a user interface designed for clarity and intuitive operation. Equipped with the TI Aries chipset, HD handset, HD speaker and HD codec (G.722), it gives an unrivalled, lifelike audio experience, plus a host of telephony features to increase efficiency.
  • TI Aries chipset and TI voice engine
  • Dual-port Gigabit Ethernet (Router & Switch)
  • Power over Ethernet
  • 4.3” TFT-LCD, 480 x 272 pixel, 16.7M colors
Category:

Description

YEALINK T38G

The Yealink T38G is the perfect combination of efficiency and style. Six SIP lines with BLF offer plenty of options for users with high call traffic. The large 4.3 in. color LCD screen with XML support offers businesses many options and functionality at their users’ fingertips. Wideband audio ensures better than excellent sound quality and EHS support means even the heaviest users can use the T38G comfortably with a headset even while away from their desk.

This particular addition to the SIP-T3 series is for managers with demanding collaborative communication needs. Created for businesses looking to future proof their systems, the T38G is designed for Gigabit Ethernet based networks. Power over Ethernet, auto-provisioning for mass deployments, and security standards such as TLS, SRTP, HTTPS, 802.1x, Open VPN and AES encryption puts this phone at the top of any manager’s radar.



YEALINK T38G Features and Functions

  • Yealink SIP T38 G – Color, Gigabit, Executive IP Phone
  • Dual-port Gigabit Ethernet, Power over Ethernet
  • 4.3” TFT-LCD, 262K colors, Intuitive user interface
  • TI Aries chipset and TI voice engine
  • HD Voice: HD Codec, HD speaker, HD handset
  • 6 VoIP accounts, BLF/BLA, IPV6, OpenVPN
  • Headset, Support Wireless Headset, LCD Expansion module



YEALINK T38G Specification

Phone Features
  • 6 VoIP accounts, Hotline, Emergency call
  • Call hold, Call waiting, Call forward, Call return
  • Call transfer (blind/semi-attended/attended)
  • Caller ID display, Redial, Mute, DND
  • Auto-answer, 3-way conferencing
  • Speed dial, SMS, Voicemail
  • Message Waiting Indication (MWI) LED
  • Tone scheme, Volume control
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Phonebook (1000 entries), Black list
  • Call history: dialed/received/missed/forwarded
  • Menu-driven user interface
  • Localized language and input method
  • Soft keys programmable
  • Supports up to 6 expansion modules(EXP39)
  • Supports Wireless Headset Adapter(EHS36)
Advanced Features
  • XML phonebook search/import
  • LDAP phonebook
  • XML Idle Screen
  • Action URL & Active URI
  • Wallpaper, Screensaver
  • Color Picture Caller-ID
  • Theme, Screen Sleep
IP PBX System Integration
  • Busy lamp field (BLF), BLF list, (BLA)
  • DND & Forward synchronization
  • Intercom, Paging, Music on hold
  • Call park, Call pickup
  • Call recording, Call completion
  • Group listening, Group pickup
  • Anonymous call, Anonymous call rejection
  • Network conference
  • Distinctive ringtone
  • Dial Plan, Dial-now
Network Features
  • SIP v1 (RFC2543), v2 (RFC3261)
  • IPv6
  • DNS SRV (RFC3263)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info
  • Proxy mode and peer-to-peer SIP link mode
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/router mode for PC port
  • TFTP/DHCP/PPPoE client
  • Telnet/HTTP/HTTPS server
  • DNS client, NAT/DHCP server
  • Logout
Security
  • Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP
  • Transport Layer Security (TLS)
  • HTTPS (server/client), SRTP (RFC3711)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection
  • Admin/VAR/User 3-level configuration mode
Management
  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • Auto-provision with PnP
  • SNMP V1/2 optional, TR069 optional
  • Configuration: browser/phone/auto-provision
  • Factory configuration customized
  • Trace package and system log export
Physical Features
  • TI Aries chipset
  • 4.3” TFT-LCD, 480 x 272 pixel, 262K colors
  • 48 keys including 16 programmable keys
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • 2xRJ45 10/100/1000Mbps Ethernet ports
  • 1XRJ12 (6P6C) EXT port
  • Power adapter required: AC 100~240V input and DC 5V/1.2A output
  • Power over Ethernet (IEEE 802.3af)
  • Power consumption: 1.6-2.6W
  • Net weight: 1.05KG
  • Dimension: 273×204x42MM
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C
