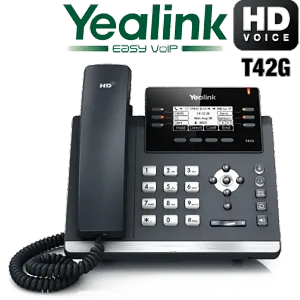

YEALINK T42G



YEALINK T42G

The T42G is an entry level and feature-rich SIP phone designed for business users. The 3-Line IP Phone delivers superb sound quality as well as a rich visual experience. The T42G supports seamless migration to GigE-based network infrastructure, enhances productivity with programmable Keys, and uses standard encryption protocols to perform highly secure remote provisioning and software upgrades.
  • Revolutionarily new design
  • HD Audio
  • Enhanced Call Management
  • Efficient Installation and Provisioning
  • Efficient Installation and Provisioning
Category:

Description

YEALINK T42G

The Yealink T42G is a business VoIP phone designed with features to compliment a business environment. The design of the SIP-T42G has ergonomic recessed buttons, an adjustable stand with non slip rubber feet, and a paper label free design. Advanced acoustic clarity technologies such as full duplex, echo cancellation, and adaptive jitter buffer create an enhanced audio experience.

This particular addition to the SIP-T4 series supports a vast number of productivity-enhancing feature such as SCA, BLF List, call forward, call transfer, and 3-way conference. Integrated PoE allows for easy deployment with centralized powering and backup. The T42G is compatible with 3CX, Asterisk and Broadsoft Broadworks.



YEALINK T42G Features and Functions

  • Revolutionarily new design
  • Yealink Optima HD voice
  • 2.7″ 192×64-pixel graphical LCD with backlight
  • Up to 3 SIP accounts
  • Paper label free design
  • PoE support
  • Headset, EHS support
  • Integrated stand with 2 adjustable angles
  • Simple, flexible and secure provisioning options



YEALINK T42G Specification

Phone Features
  • 3 VoIP accounts
  • One-touch speed dial, redial
  • Call forward, Call waiting, Call transfer, Call hold
  • Call return, group listening
  • Mute, Auto answer, DND
  • Call history: dialed/received/missed/forwarded
  • 3-way confernecing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Hotline, Emergency call
  • Set date time manually or automatically
  • Dial Plan, Push XML, Action URL
Audio Features
  • HD voice: HD handset, HD speaker
  • Wideband codec: G.722
  • Codecs: G.722, G.711(A/μ), G.723, G.729AB, G.726, GSM
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC
Directory
  • Loal phonebook up to 300 entries
  • Broadsoft Contacts: Custom/Enterprise/Personal/Common/Search/Speed Dial
  • Black list
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
IP-PBX and BroadSoft Features
  • Busy lamp field (BLF), BLF list
  • Bridged line apperance(BLA)/SCA
  • Anonymous call, Anonymous call rejection
  • DND & forward synchronization
  • BroadWorks Anywhere
  • N-Way Calling, Remote Office
  • Network Call Logs – Basic
  • Broadsoft call center features
  • Message waiting indicator (MWI)
  • Voice mail,Call park, Call pickup
  • Intercom, paging, Music on hold
  • Call recording
Display and Indicator
  • 2.7″ 192×64 pixel 4-level grayscale graphical LCD with backlight
  • LED for call and message waiting indication
  • Dual-color (red or green) illuminated LEDs for line status information
  • Intuitive user interface with icons and soft keys
  • National language selection
  • Caller ID with name, number
Interface
  • Dual-port Gigabit Ethernet
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • Power over Ethernet (IEEE 802.3af), Class 2
Other Physical Features
  • Stand with 2 adjustable angles
  • External Universal AC Adapter (optional): AC 100~240V input and DC 5V/2A output
  • Power consumption (PSU): 1.4W-3.9W
  • Dimension(W*D*H*T): 212mm*189mm*175mm*54mm
  • Operating humidity: 10~95%
  • Storage temperature: -10~50°C
Management
  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
  • Auto-provision with PnP
  • BroadSoft device management
  • Zero-sp-touch, SNMP
  • Provisioning server redundancy supported
  • Reset to factory, Reboot
  • Package tracing export, System log
Network and Security
  • SIP v1 (RFC2543), v2 (RFC3261)
  • NAT transverse: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP for voice
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • OpenVPN, IEEE802.1X
  • IPv6
Package Features
  • Qty/CTN: 5 PCS
  • N.W/CTN: 6.9KG
  • G.W/CTN: 7.6K
  • Giftbox size: 241mm*236mm*138mm
  • Carton Meas: 707mm*253mm*244mm
