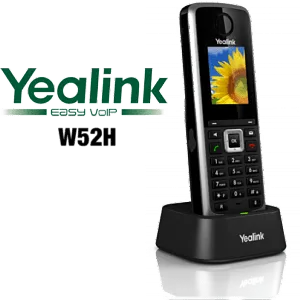

Yealink W52H



Yealink W52H

The Yealink W52H is a SIP Cordless Phone System designed for small business and SoHo users looking for a cost-effective and scalable SIP-based mobile communications system. The Yealink W52H combines the freedom of wireless communication with business features usually reserved for desk phones, such as intercom, transfer, call forward, 3-way conferencing, and the option to use a power supply or power over ethernet. This system works on Broadsoft, Asterisk, and 3CX with quick and easy configuration.
  • Exceptional HD sound with wideband technology
  • Up to 4 simultaneous external calls
  • Up to 5 DECT cordless handsets
  • Up to 5 VoIP accounts
  • 1.8″ color display with intuitive user interface
  • 10 hours talk time, 100 hours standby time
  • Integrated PoE (Class 1)
  • Desktop or wall mountable
Category:

Description

Yealink W52H

The Yealink W52H handset when paired with a Yealink W52P base gives users increased mobility and flexibility when it comes to making calls. Four W52H handsets can be paired with each base allowing for five different users and 4 simultaneous calls.

The Yealink W52H handset features a 1.8” color display with an intuitive user interface. They also support HD voice and feature an integrated full duplex speakerphone.



Yealink W52H Features and Functions

  • Up to 4 simultaneous calls
  • Up to 5 handsets
  • Up to 5 VoIP accounts
  • Handset select for receiving call
  • Handset and Number select for making call
  • Paging, Intercom, Auto answer
  • Call hold, Call transfer
  • Switching between calls
  • 3-way conference
  • Call waiting, Mute, DND
  • Caller ID display, Redial
  • Call forward (Always/Busy/No Answer)
  • Speed dial, Voicemail, Silence
  • Message Waiting Indication (MWI)
  • Phonebook for up to 500 entries (stored in the base)
  • Phonebook search / import / export
  • Call history (Outgoing/Missed/Accepted)
  • Direct IP call without SIP proxy
  • Soft reboot or factory reset
  • Keypad lock, Emergency call
  • Dial Plan
  • Music on hold
  • Anonymous call, Anonymous call rejection
Personalization
  • 9 ringer melodies
  • Screen Saver
  • Two kind of colour schemes
  • Multiple languages



Yealink W52H Specification

Voice and Codecs Features
  • Full-duplex speakerphone
  • Receiver volume control: 5 steps
  • Ringer volume control: 5 steps+off
  • Multiple advisory tones
  • Acoustic warning for low battery status
  • DTMF
  • Wideband codec: G.722
  • Narrowband codec: G.711μ/A, G.723, G.726, G.729, iLBC
  • VAD, CNG, AEC, PLC, AJB
Network Features
  • SIP v1 (RFC2543), v2 (RFC3261)
  • SNTP/NTP
  • VLAN(802.1Q and 802.1P)
  • 802.1x, LLDP, PPPoE
  • STUN Client (NAT Traversal)
  • UDP, TCP
  • IP Assignment: Static/DHCP
Security
  • Open VPN
  • Transport Layer Security (TLS)
  • HTTPS (server / client)
  • SRTP (RFC3711)
  • Digest authentication using MD5
  • Secure configuration file via AES encryption
  • Admin / Var / User 3-level configuration mode
Connectors
  • CAT-iq2.0
  • 1 x RJ45 10/100M Ethernet port
  • Power over Ethernet (IEEE 802.3af)
  • Headset jack (2.5 mm)
  • Handset upgrade via USB
Physical Feature
  • Range: 50 meters indoor, 300 meters outdoor
  • 10 hours talk time, 100 hours standby time
  • 1.8’’128×160 pixels color display
  • Desktop or wall mountable
  • LCD backlit, Key backlit
  • Energy-saving ECO mode/ECO Mode+
  • 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
  • 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call
  • Base station: DC 5V / 600mA Output
  • Charger: DC 5V / 600mA Output
  • Phone size: 144mm x 50mm x 24mm
  • Base station size: 153mm x 108mm x 45mm
  • Operating humidity: 10 ~ 95%
  • Operating temp: -10 ~ +50°C
Package Features
  • 1 x Handset, 1xBase, 1 x Belt clip, 2 x Ni-MH AAA: 1.2V / 800mA, 2 x Charger Cradle, 2 x Power Adapter 1 x Cable, 2 x Guide, 1 x CD-ROM
  • Qty/CNT: 10pcs
  • Giftbox size: 206mm*192mm*85mm
  • Carton Meas: 455mm*396mm*211mm
  • N.W: 7.4KG
  • G.W: 8.1KG
