YEALINK W52P

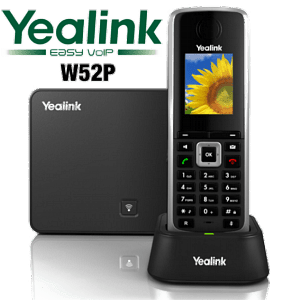

Yealink W52P

The Yealink W52P is a SIP Cordless Phone System designed for small business and SoHo users looking for a cost-effective and scalable SIP-based mobile communications system. The Yealink W52P combines the freedom of wireless communication with business features usually reserved for desk phones, such as intercom, transfer, call forward, 3-way conferencing, and the option to use a power supply or power over ethernet. This system works on Broadsoft, Asterisk, and 3CX with quick and easy configuration.
  • Exceptional HD sound with wideband technology
  • Up to 4 simultaneous external calls
  • Up to 5 DECT cordless handsets
  • Up to 5 VoIP accounts
  • 1.8″ color display with intuitive user interface
  • 10 hours talk time, 100 hours standby time
  • Integrated PoE (Class 1)
  • Desktop or wall mountable
Category:

Description

Yealink W52P

Designed for small business and SoHo who are looking for immediate cost saving but scalable SIP-based mobile communications system, the Yealink W52P combines the benefits of wireless communication with rich business features of Voice over IP telephony.

With the W52P the user can benefit from freedom of movement, lifelike voice communications, multi-tasking convenience, professional features like intercom, transfer, call forward, 3-way conferencing, PoE etc. The VoIP DECT phone works with widely-known Broadsoft, Asterisk, 3CX and supports quick and easy configuration.



Yealink W52P Features and Functions

  • Up to 4 simultaneous calls
  • Up to 5 handsets
  • Up to 5 VoIP accounts
  • Handset select for receiving call
  • Handset and Number select for making call
  • Paging, Intercom, Auto answer
  • Call hold, Call transfer
  • Switching between calls
  • 3-way conference
  • Call waiting, Mute, DND
  • Caller ID display, Redial
  • Call forward (Always/Busy/No Answer)
  • Speed dial, Voicemail, Silence
  • Message Waiting Indication (MWI)
  • Phonebook for up to 500 entries (stored in the base)
  • Phonebook search / import / export
  • Call history (Outgoing/Missed/Accepted)
  • Direct IP call without SIP proxy
  • Soft reboot or factory reset
  • Keypad lock, Emergency call
  • Dial Plan
  • Music on hold
  • Anonymous call, Anonymous call rejection
Personalization
  • 9 ringer melodies
  • Screen Saver
  • Two kind of colour schemes
  • Multiple languages



Yealink W52P Specification

Voice and Codecs Features
  • Full-duplex speakerphone
  • Receiver volume control: 5 steps
  • Ringer volume control: 5 steps+off
  • Multiple advisory tones
  • Acoustic warning for low battery status
  • DTMF
  • Wideband codec: G.722
  • Narrowband codec: G.711μ/A, G.723, G.726, G.729, iLBC
  • VAD, CNG, AEC, PLC, AJB
Network Features
  • SIP v1 (RFC2543), v2 (RFC3261)
  • SNTP/NTP
  • VLAN(802.1Q and 802.1P)
  • 802.1x, LLDP, PPPoE
  • STUN Client (NAT Traversal)
  • UDP, TCP
  • IP Assignment: Static/DHCP
Security
  • Open VPN
  • Transport Layer Security (TLS)
  • HTTPS (server / client)
  • SRTP (RFC3711)
  • Digest authentication using MD5
  • Secure configuration file via AES encryption
  • Admin / Var / User 3-level configuration mode
Connectors
  • CAT-iq2.0
  • 1 x RJ45 10/100M Ethernet port
  • Power over Ethernet (IEEE 802.3af)
  • Headset jack (2.5 mm)
  • Handset upgrade via USB
Physical Feature
  • Range: 50 meters indoor, 300 meters outdoor
  • 10 hours talk time, 100 hours standby time
  • 1.8’’128×160 pixels color display
  • Desktop or wall mountable
  • LCD backlit, Key backlit
  • Energy-saving ECO mode/ECO Mode+
  • 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
  • 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call
  • Base station: DC 5V / 600mA Output
  • Charger: DC 5V / 600mA Output
  • Phone size: 144mm x 50mm x 24mm
  • Base station size: 153mm x 108mm x 45mm
  • Operating humidity: 10 ~ 95%
  • Operating temp: -10 ~ +50°C
Package Features
  • 1 x Handset, 1xBase, 1 x Belt clip, 2 x Ni-MH AAA: 1.2V / 800mA, 2 x Charger Cradle, 2 x Power Adapter 1 x Cable, 2 x Guide, 1 x CD-ROM
  • Qty/CNT: 10pcs
  • Giftbox size: 206mm*192mm*85mm
  • Carton Meas: 455mm*396mm*211mm
  • N.W: 7.4KG
  • G.W: 8.1KG
