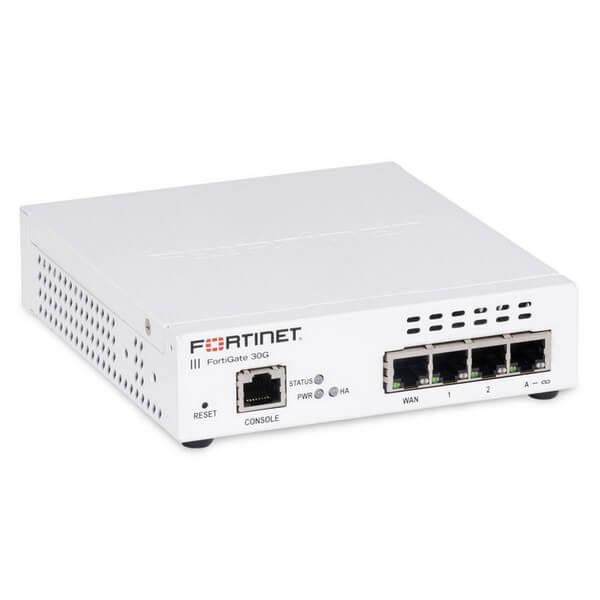

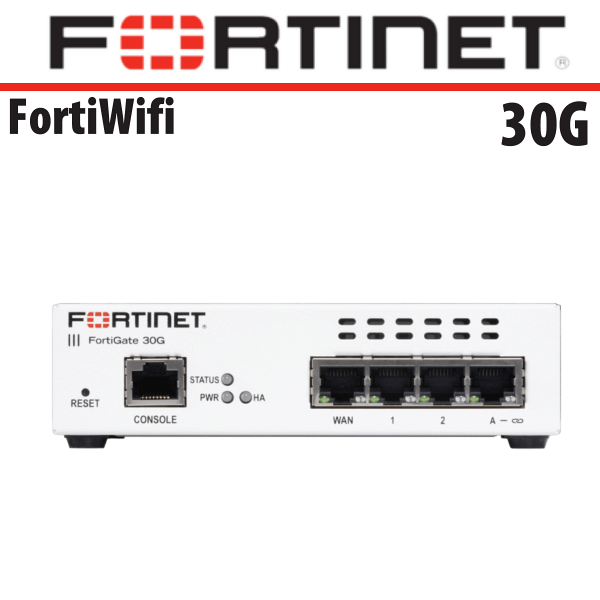

FortiWifi30G Next-Generation Firewall Dubai
The FortiWifi30G Dubai seamlessly integrates firewalling, SD-WAN, and security functionalities into a single appliance, making it an optimal choice for establishing security-driven networks at distributed enterprise locations and transforming WAN architecture at any scale. Powered by the FortiOS operating system, the FortiWifi30G represents the industry’s first convergence of networking and security, allowing organizations to efficiently safeguard their dynamic digital infrastructures.
As a fundamental component of the FortiWifi30G Security Fabric platform, the FortiWifi30G Next Generation Firewall (NGFW) operates in conjunction with FortiGuard’s AI-powered Security Services to provide coordinated, automated, end-to-end threat protection in real-time across various use cases. Engineered with patented SD-WAN-based ASIC technology, the FortiWifi30G delivers unparalleled performance compared to traditional CPUs, achieving lower costs and reduced power consumption. Its application-specific design, combined with an embedded multi-core processor, accelerates the integration of networking and security functions, optimizing secure connections and enhancing user experiences at branch locations.
The FortiWifi30G Dubai is equipped with a comprehensive suite of features designed to bolster network security and performance. It includes an advanced Next Generation Firewall (NGFW) that safeguards against a wide array of cyber threats, including malware, viruses, spyware, and botnets. For enhanced performance, the device supports Wi-Fi 6 standards, ensuring faster and more reliable wireless connectivity. Its dual-band operation across 2.4 GHz and 5 GHz frequency bands maximizes performance and coverage. Additionally, beamforming technology directs Wi-Fi signals toward specific devices, improving both range and performance, while MU-MIMO technology allows multiple devices to connect simultaneously, further enhancing speed.
Centralized management is facilitated through the FortiCloud platform, complemented by an intuitive web-based interface that simplifies configuration and management tasks.
Specifications:
Hardware Specifications | |
Hardware Accelerated GE WAN Port | 1 |
Hardware Accelerated GE RJ45 Ports | 2 |
Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
USB Ports | — |
Console Port (RJ45) | 1 |
Trusted Platform Module (TPM) | |
Bluetooth Low Energy (BLE) | — |
Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
System Performance* — Enterprise Traffic Mix | |
IPS Throughput | 800 Mbps |
NGFW Throughput | 570 Mbps |
Threat Protection Throughput | 500 Mbps |
System Performance | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
Firewall Latency (64 byte UDP packets) |
2.87 μs |
Firewall Throughput (Packets Per Second) |
5.85 Mpps |
Concurrent Sessions (TCP) | 600,000 |
New Sessions/Second (TCP) | 30,000 |
Firewall Policies | 2000 |
IPsec VPN Throughput (512 byte) | 3.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 250 |
SSL-VPN Throughput | — |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 55,000 |
Application Control Throughput (HTTP 64K) | 830 Mbps |
CAPWAP Throughput (HTTP 64K) | TBA Gbps |
Virtual Domains (Default / Maximum) | Not Supported |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Passive, Active-Active |
Dimensions | |
Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
Height x Width x Length (mm) | 40.5 x 142 x 160 |
Weight | 1.5 lbs (0.7 kg) |
Rack Mount Type | NA |
Wall Mountable | Optional |
Form Factor (supports EIA/non‑EIA standards) | Desktop |
Operating Environment and Certifications | |

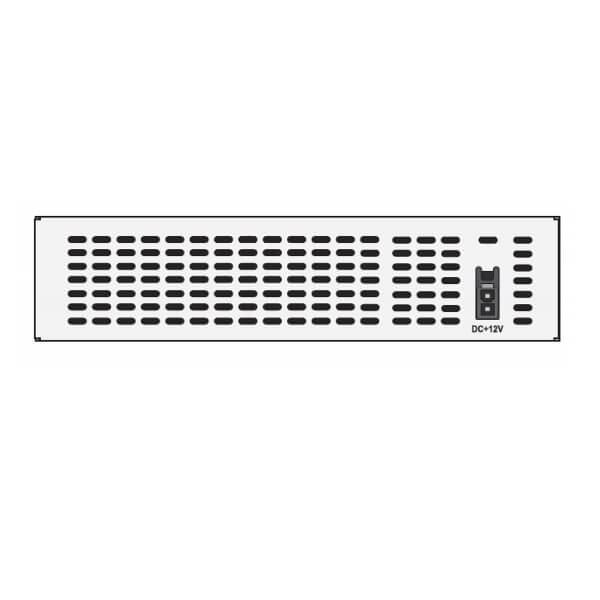

Power Rating | 12VDC, 2A |
Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
Maximum Current | 110V/0.17A, 240V/0.085A |
Power Consumption (Average / Maximum) | 11.3 W / 13.6 W |
Heat Dissipation | 46 BTU/hr |
Operating Temperature | 32° to 104°F (0° to 40°C) |
Storage Temperature | -31° to 158°F (-35° to 70°C) |
Humidity | 20% to 90% non-condensing |
Noise Level | N/A |
Operating Altitude | 10 000 ft (3048 m) |
Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
Certifications | USGv6/IPv6 |
