Grandstream GXP2140 Dubai

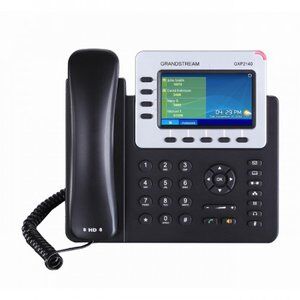

Grandstream GXP2140

The Grandstream GXP2140 Dubai is compatible with the GXP2200 Extension Module, allowing for quick and easy access to up to 160 contacts at the touch of a finger. Ideal for enterprises and SMBs, the GXP2140 is the perfect choice for users looking for a high quality, feature rich multi-line executive IP phone with advanced functionality and performance.
  • 480×272 TFT color LCD
  • Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports, PoE, Bluetooth, USB, EHS (Electronic Hook-Switch) with Plantronics headsets, and capability to connect/power up to 4 cascaded 2200EXT extension modules with LCD display
  • Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
  • Integrated real-time web applications [weather, currency, RSS news (pending), etc.]

Description

Grandstream GXP2140 Dubai

The Grandstream GXP2140 Dubai is definitely an attractive desktop device offering a great deal of features. Enjoy HD VoIP with the handset and speakerphone, or join five-way conferencing. The RJ9 port and Bluetooth support offer headset connectivity, with compatibility for EHS with Plantronics headsets. The crisp TFT Liquid crystal display enables you to browse contacts, and may access apps for weather, Internet services and much more.The next generations Grandstream GXP2140 Dubai is an enterprise grade Corded VoIP Phone that in addition to standard and advanced telephony functionality also features customizable applications. For telephony functionality the GXP2140 includes context-sensitive soft keys, HD audio quality, broad interoperability with SIP devices and more. The Grandstream GXP2200EXT Expansion module can be used with to add additional line appearances.

Grandstream GXP2140 Features and Functions

  • 4 Line appearances
  • Support for G.722 HD Voice
  • 4.3″ (480×272) TFT Color LCD Display
  • Dual Gigabit RJ45 Ports
  • Built-in auto sensing IEEE 802.3 af Power over Ethernet
  • Universal Power Supply Included
  • RJ9 headset port
  • Support for Electronic Hook Switch (EHS) with Plantronics Headsets



Grandstream GXP2140 Specification

Protocols / StandardsSIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Networking InterfacesDual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display4.3 inch (480×272) TFT color LCD
BluetoothYes, Bluetooth V2.1
Auxiliary PortsRJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
Voice CodecSupport for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Telephony FeaturesHold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Extension ModuleConnect up to 4 Grandstream GXP2200EXT modules
HD AudioYes, both on handset and speakerphone
Base StandYes, allow 2 angle positions
QoSLayer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
SecurityUser and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-languageEnglish, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish
Upgrade and ProvisioningFirmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power and Green EnergyUniversal power adapter included: Input: 100-240V; Output: +12V, 1A; Integrated Power-over-Ethernet (802.3af),Max power consumption 18W (power adapter) or 25.5W (PoE)
PhysicalDimention: 222mm (W) x 210mm (L) x 93mm (H); Unit weight: 0.98kg; Package weight: 1.62kg
Temperature and Humidity32~104°F / 0-40°C, 10~90% (non-condensing)
Package ContentGXP2160 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
ComplianceFCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479, AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
