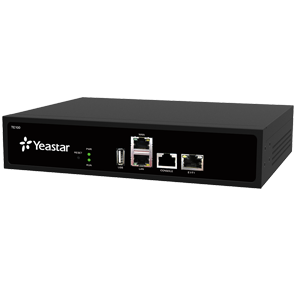

NeoGate PRI VoIP Gateway TE100

NeoGate PRI VoIP Gateway TE100

NeoGate TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks. TE100 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE100 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.
  • Cost-effective Call Routing
  • Easy-to-navigate GUI
  • Simple Installation
  • Easy to integrate
  • Low power consumption for your green office
Category:

Description

NeoGate PRI VoIP Gateway TE100

The Yeastar Neogate TE100 PRI Gateway is a basic, single port E1/T1/J1 VoIP Gateway that supports up to 30 concurrent calls. Designed to bridge existing E1/T1/J1 ports and VoIP networks, the Neogate TE100 offers a cost-effective and green solution to established legacy telephone systems.
With the TE100 PRI Gateway from Yeastar, you can enjoy all the benefits of VoIP by integrating it into your existing network, including an easy to use GUI. The TE100 PRI Gateway allows for inexpensive SIP trunking for SMBs. The Yeastar TE100 could also connect VoIP systems to E1/T1/J1 service from Legacy carriers.
  • Connect legacy PBX systems to VoIP services
  • Connect legacy PBX systems to remote sites over private VoIP links
  • Connect IP PBX systems to legacy TDM services
  • Phased transition from Legacy PBX to IP PBX
We supply and install NeoGate PRI VoIP Gateway TE100 in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Kaimah, Fujairah & Umm al quwain. Contact Us today to get free product consultation and quote.



NeoGate PRI VoIP Gateway TE100 Specification

E1/T1/J1 Port1 (Support PRI, MFC R2, SS7)
ProtocolSIP (RFC3261)
Transport ProtocolUDP,TCP,TLS,SRTP.
DTMFRFC2833, SIP INFO, In-band
CodecG.711 a/u-law, G.722, G.726, G.729 A, GSM.
LAN10/100 Mbps
WAN10/100 Mbps
Size213x160x44mm
Power SupplyAC 100~240V,50~60Hz (DC 12V, 1A)



NeoGate PRI VoIP Gateway TE100 Features

  • Trunk Support
  • Call Routing Rules
  • Automatic appending and stripping of digits to dialed numbers
  • Caller ID name and number support
  • FAX support
  • Blacklist
  • Firewall
  • DDNS Support
  • Backup And Restore
  • Easy to install
