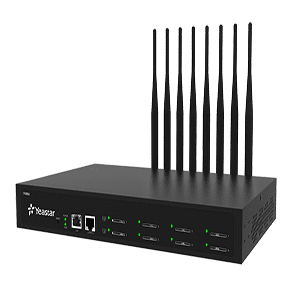

NeoGate TG800 GSM Gateway

NeoGate TG800

NeoGate TG800 is a powerful VoIP GSM/CDMA/UMTS gateway with 8 channels, bridging between GSM/CDMA/UMTS network and IP-based systems. Designed to slash the cost of telephone calls, it can find the cheapest route and use the most economical SIM card.
  • SIP Server and SIP Trunk supported
  • SIP Peer Mode supported
  • Calling Type: VoIP to GSM/CDMA/UMTS, GSM/CDMA/UMTS to VoIP
  • GSM/CDMA/UMTS Ports Group Manage, VoIP Trunk Group
Category:

Description

NeoGate TG800

The TG800 Gateway from Yeastar can be a cost-saving addition for a back up option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it’s easy to install with a web based GUI and simple to integrate.
Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, call back function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web based configuration, and it’s easy to integrate and easy to install.
  • Incoming /Outgoing Routing rules
  • SMS Sending and Receiving
  • Send Bulk SMS
  • Gain Adjustment
We supply and install NeoGate TG800 in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Kaimah, Fujairah & Umm al quwain. Contact Us today to get free product consultation and quote.



NeoGate TG800 Specification

Number of GSM/CDMA/UMTS channels (Max) 8
GSM Network type 850/900/1800/1900MHz
CDMA Network type 800MHz
UMTS Network type 9900/2100MHz or 850(800)/2100MHz or 850/900/1900MHz or 850/900/1800/1900MHz
Protocol SIP (RFC3261),IAX2
Transport Protocol UDP,TCP,TLS,SRTP
DTMF RFC2833, SIP INFO, In-band
Codec G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation ITU-T G.168 LEC
LAN 1 (10/100Mbps)
Network Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal Static NAT, STUN
Size 340x210x44mm
Power Supply AC 100-240V 50/60Hz 1.5A MAX
Operation Range 0°C to 40°C, 32°F to 104°F
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing



NeoGate TG800 Features

  • USSD
  • PIN Modify
  • Carrier Selection: Auto/Manual
  • Balance Alarm
  • Caller ID/CLIR
  • Black List
  • Hotline
  • Call Duration Limitation
  • Call Transfer
  • Call Back
  • Call Status Display
  • Call Detail Record (CDR)
  • Call Progress Tone Generation
  • Call Duration Limitation for SIM Card/Single Call
  • LCR (Least Cost Routing)
  • Top voice quality (EFR super sound)
  • SIP Response Code Switch
  • Open API for SMS and USSD
  • Real Open API Protocol (Based on Asterisk)
  • IP Blacklist
  • Network Attack Alert
  • System Logs
  • Web based configuration
