Description

PowerEdge XR12 Rack Server Dubai

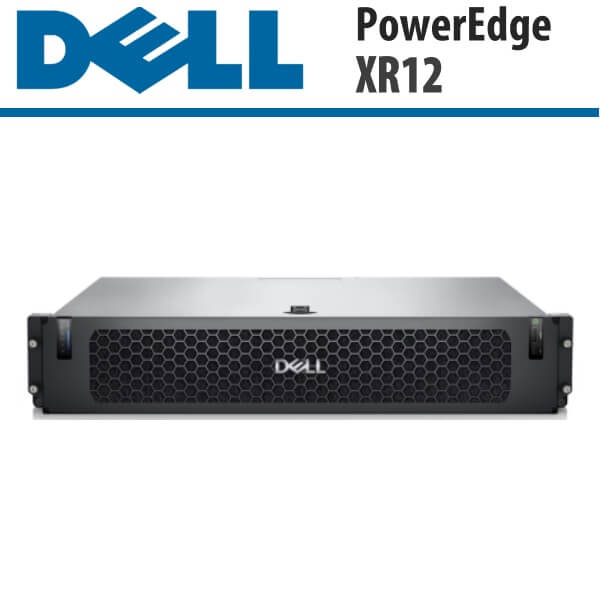

The Dell EMC PowerEdge XR12 Dubai is a robust, compact, and versatile 2U rack server designed to deliver exceptional performance in the most demanding edge environments. With its marine-compliant and ruggedized construction, this server is tailored for industries such as telecommunications, retail, restaurants, government, and military operations. Built to withstand extreme conditions like dust, temperature fluctuations, shock, and vibration, the XR12 ensures reliable performance where traditional servers fall short. Despite its compact 16-inch (400 mm) depth, it is powered by 3rd generation Intel® Xeon® Scalable processors with up to 36 x86 cores, offering unparalleled computing power. This server supports accelerators, DDR4 memory, PCIe 4.0, persistent memory, and up to six drives, enabling businesses to handle complex workloads with ease.

Engineered for flexibility, the XR12 features dual front and rear port configurations that support reverse airflow, reducing the need for costly HVAC upgrades or retrofitting. It is designed for longevity, ensuring extended service life and minimizing downtime, making it an ideal solution for mission-critical operations. The server’s cybersecurity features offer end-to-end protection, starting with Secure Component Verification and Silicon Root of Trust to safeguard the hardware from assembly. Additionally, tools like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment enhance cyber resilience, while iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery enable swift threat mitigation and recovery.

Managing IT infrastructure is simplified with the Dell EMC OpenManage portfolio, which offers real-time visibility, thermal management, and RESTful API with Redfish for seamless control. Intelligent automation allows smooth collaboration between human inputs and system capabilities, increasing productivity and reducing complexity. With integrated change management and compatibility with platforms like Microsoft, VMware, ServiceNow, and Ansible, the XR12 is equipped for modern, full-stack IT management.

The Dell EMC PowerEdge XR12 Dubai is a transformative solution that enables businesses to scale and innovate even in rugged and space-constrained environments. Whether operating in dynamic retail spaces or challenging military conditions, this server offers unmatched reliability, performance, and security. Designed to meet the demands of edge computing, the XR12 is the ultimate choice for organizations looking to embrace innovation without compromise, delivering high-impact services under the most challenging circumstances.

Features and Design

Power business insights at the edge

The new Dell EMC PowerEdge XR12 Dubai is a ruggedized, MIL-STD and NEBS Level 3 compliant 2U server. At only 16 inches/400mm deep it offers accelerator-based performance outside the data center.

Support new services in challenging locations

The Dell EMC PowerEdge XR12 Dubai is a compact, 2U ruggedized and certified server for conditions outside the data center. Designed for telco, defense, remote office, back office and retail applications, the PowerEdge XR12 is built to withstand dust, extreme temperatures, shock, vibration, and other environmental variants.

Boost performance at the edge with up to 36 x 86 cores, support for accelerators, the latest memory and drive technologies.
Add versatility with reduced depth and front and rear port access options.
Offer game-changing services without downtime and disruption.
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premises, edge and cloud environments.

Technical Specifications

Processor

One 3rd Generation Intel® Xeon® Scalable processor with up to 36 cores

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux®
Red Hat® Enterprise Linux® for Real Time
SUSE® Linux Enterprise Server
VMware® ESXi

Chipset

Intel® C620 series chipset

Accelerators

Up to 2 double-width 300 W
Up to 2 single-width 70 W or 150 W

Memory

DIMM Speed: Up to 3200 MT/s
Memory Type: RDIMM, LRDIMM, Intel® Optane™ PMem 200 Series
Memory Module Slots: 8 DDR4 DIMM slots
Maximum RAM:
- RDIMM: 512 GB
- LRDIMM: 1 TB
- Intel® Optane™ PMem 200 Series: 512 GB

Storage

Drive Bays: Up to 6 x 2.5-inch SAS/SATA/NVMe SSDs (max 92 TB)
Rear Bays: N/A
Storage Controllers:
- Internal Controllers: PERC H755, PERC H345, HBA355i
- External Controllers: PERC H840, HBA355e
- Software RAID: S150
Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server:
- iDRAC9
- iDRAC Service Module
- iDRAC Direct
Consoles:
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage SupportAssist plugin
- OpenManage Update Manager plugin
Mobility: OpenManage Mobile
Tools:
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- System Update Utility
- Update Catalogs
OpenManage Integrations:
- BMC Truesight
- Microsoft® System Center
- RedHat® Ansible® Modules
- VMware® vCenter® and vRealize Operations Manager
OpenManage Connections:
- IBM Tivoli® Netcool/OMNIbus
- IBM Tivoli® Network Manager IP Edition
- Micro Focus® Operations Manager
- Nagios® Core
- Nagios® XI

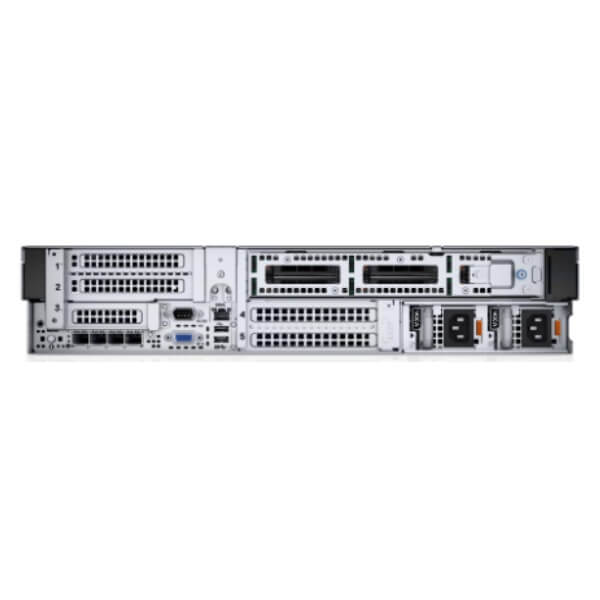

Ports

Network Ports: 4 x 25 GbE SFP+ LOM
Rear Accessed Configuration:
- Front Ports:
  - 1 x iDRAC Direct (Micro-AB USB) port
  - 1 x USB 2.0
- Rear Ports:
  - 1 x USB 2.0
  - 1 x USB 3.0
  - 1 x iDRAC dedicated port
  - 1 x Serial
  - 1 x VGA
- Internal Ports: 1 x USB 3.0
Front Accessed Configuration:
- Front Ports:
  - 2 x USB 2.0
  - 1 x iDRAC dedicated port
  - 1 x USB 3.0
  - 1 x Serial
  - 1 x VGA
  - 1 x iDRAC Direct (Micro-AB USB) port
- Rear Ports: N/A
