Description

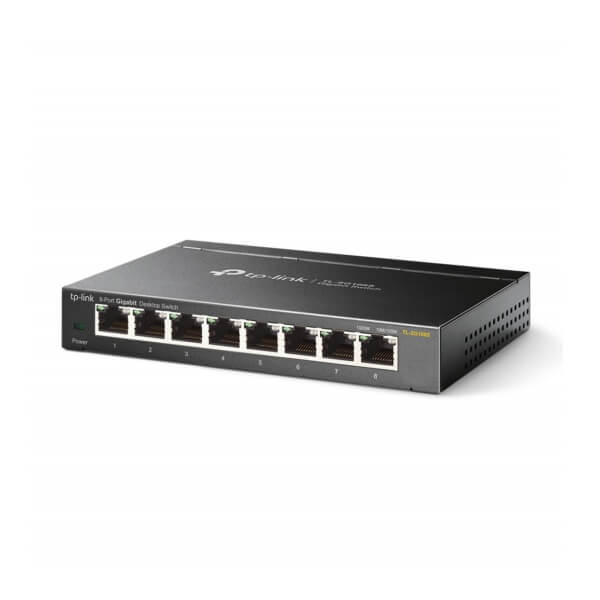

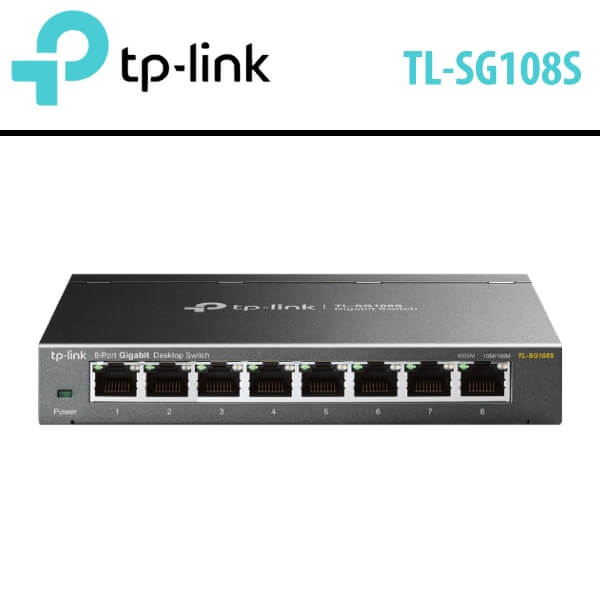

Tplink TL-SG108S Dubai
The Tplink TL-SG108S Dubai is an 8-Port Gigabit Desktop Switch that has been specifically designed to facilitate a seamless upgrade to Gigabit Ethernet. This switch allows you to effortlessly enhance the performance of your network server and backbone connections, or transform a Gigabit into a desktop connection with minimal effort. The Tplink TL-SG108S Dubai offers a user-friendly plug-and-play functionality, eliminating the need for complex configurations. Additionally, it boasts a power-efficient design that reduces energy consumption, making it an environmentally-friendly choice for your home or office network.
Quick Features :
- 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Technical Details
| HARDWARE FEATURES | |
| STANDARDS AND PROTOCOLS | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| INTERFACE | 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| FAN QUANTITY | Fanless |
| POWER CONSUMPTION | Maximum : 3.31W (220V/50Hz) |
| EXTERNAL POWER SUPPLY | External Power Adapter (Output : 9VDC / 0.6A) |
| BUFFER SIZE | 1.5Mb |
| LED INDICATOR | · System Power
· Link/Act indicators per port built into each RJ-45 port |
| DIMENSIONS ( W X D X H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
| PERFORMANCE | |
| PACKET FORWARDING RATE | 11.9Mpps |
| MAC ADDRESS TABLE | 4K |
| PACKET BUFFER MEMORY | 1.5Mb |
| JUMBO FRAME | 16KB |
| SOFTWARE FEATURES | |
| ADVANCED FEATURES | · Green Technology, saving power up to 82%
· 802.3X Flow Control · 802.1p/DSCP QoS · IGMP Snooping |
| TRANSFER METHOD | Store and Forward |
| OTHERS | |
| CERTIFICATION | CE, FCC ,RoHS |
| PACKAGE CONTENTS | · 8-Port 10/100/1000Mbps Desktop Switch
· Power Adapter · Installation Guide · Rubber Feet |
| ENVIRONMENT | · Operating Temperature : 0°C~40°C (32°F~104°F)
· Storage Temperature : -40°C~70°C (-40°F~158°F) · Operating Humidity : 10% ~ 90%, non-condensing · Storage Humidity : 5%~90% non-condensing |
