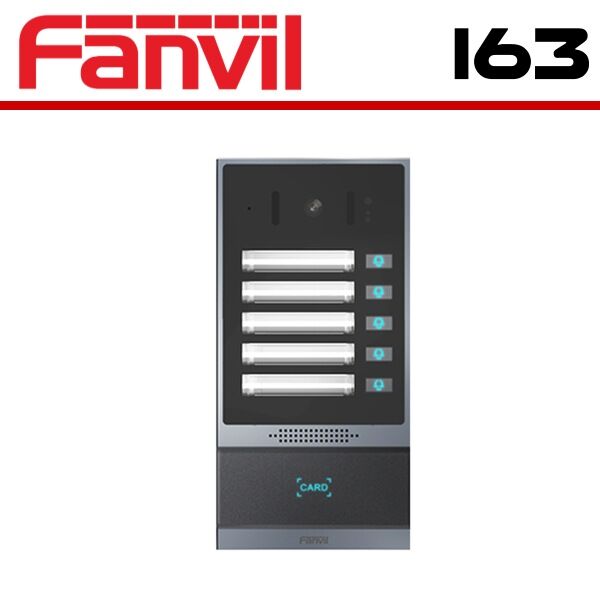

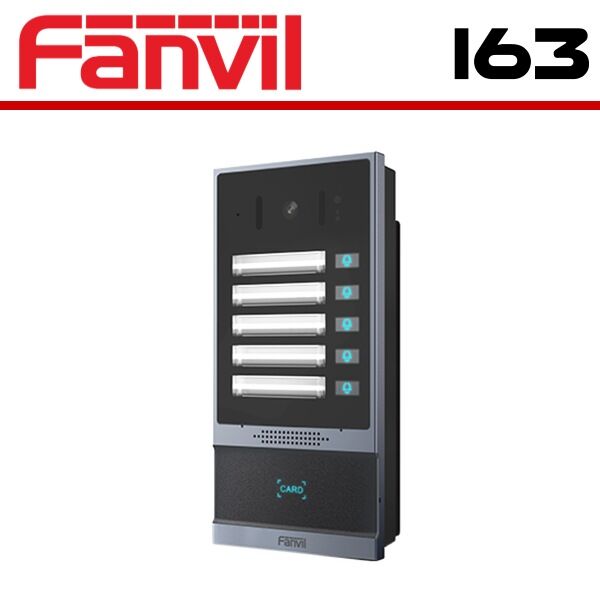

Fanvil i63 Dubai

The Fanvil i63 Dubai Video Door Phone is a highly advanced and feature-rich door entry device that is designed for homes, apartments, and small businesses. It comes equipped with a high-definition camera, an intercom system, and an access control feature, making it a highly reliable and convenient security solution for monitoring and controlling access to your property.

The Fanvil i63 Dubai Video Door Phone boasts a high-quality 1080p camera that captures clear and detailed images of visitors at your doorstep. The camera also features infrared night vision, which allows you to see visitors in low light conditions. This device allows you to speak with your visitors through the intercom system and even record audio and video messages for later playback.

The access control feature of the Fanvil i63 Dubai Video Door Phone allows you to remotely control who has access to your property. With the mobile app, you can grant access to visitors, such as delivery personnel, even if you are not physically present. The device can also be configured to work with a variety of access control systems and IP phones, giving you the flexibility to choose the equipment that best suits your needs.

The Fanvil i63 Dubai Video Door Phone is designed with durability in mind. It features an aluminum alloy casing that can withstand harsh weather conditions and is equipped with an IP65 rating, making it resistant to dust and water. Its touch screen display is made of toughened glass, ensuring it can withstand frequent use.

Installation of the Fanvil i63 Dubai Video Door Phone is easy and can be done without professional help. The device can be mounted on a surface or flush-mounted, depending on your preferences. It also comes with a tamper-resistant design that makes it difficult for intruders to bypass the security system.

Overall, the Fanvil i63 Dubai Video Door Phone is an excellent security solution for anyone looking to monitor and control access to their property. Its advanced features, durable construction, and easy installation make it a reliable and convenient security solution that will help keep your property safe and secure.

Fanvil i63 Specifications

Generic

• 2 SIP lines
• Video intercom
• IP address announcement in English
• Programmable DSS key
• RS485 port: Support
• Wiegand port: Support
• Switch signal input and output
• Door control in and out
• Line-out for induction loop antenna: Support
• Support TF card
• PoE enabled
• Open the door operation: DTMF, RFID card, NFC, indoor switch,Time open door
• RFID cards (support 10,000)
• Door open records (support 200,000)

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Dynamic multicast function
• SIP call multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor: 1/2.9” color CMOS
• Pixels: 2 Mega
• Video coding: H.264
• Motion detection
• Resolution:  Main stream 1080P@30fps  Sub stream VGA@30fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Viewing angle: Diagonal: 141°  Horizontal: 120°  Vertical: 60°

Network

• Physical: 10/100 Mbps Ethernet
• IP mode:IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Speed dial button x 5
• RJ45 port x1: connect the network
• PoE enabled
• Short-in detect port x 3
• Port: Terminal socket
• Short-out control port x2 (built-in relay)
• Relay: MAX DC30V / 2A, AC125V / 0.5A
• Port: Terminal socket
• Tamper switch x1
• TF card slot x1: connect TF card,up to 128GB
• RF Card Reader:125KHz&13.56MHz
• RS485:Support
• Wiegand Port: In/Out configurable, Wiegand in by default
• Line-out:support, for induction loop antenna
• DC port x1: DC power input
• DC power input: DC12V/1A
• Port: Terminal socket
• PoE level: 802.3af Class 3
• Protection level:IP66 and IK07
• Housing material: Aluminum
• Installation: Wall-mounted &Flush-mounted()
• Working temperature: -40℃ ~ 70℃
• Storage temperature: – 40℃ ~ 70℃
• Working humidity: 10~95%
• Device dimensions: 177.4x88x36.15 mm
• Gift box dimensions: 220x123x65 mm
• Outer CTN dimensions: 463x350x266 mm (20 PCS)
