Description

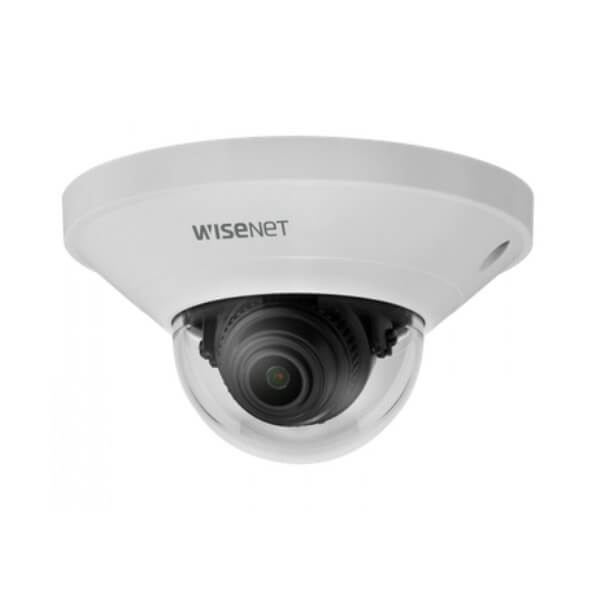

Hanwha QND6021 Indoor Dome Camera
The Hanwha QND6021 is a high-performance mini indoor dome camera designed to provide top-tier surveillance with advanced technology. Featuring high-definition imaging, intelligent analytics, and seamless system integration, this compact yet powerful security camera is an ideal choice for businesses, offices, retail spaces, and other indoor environments that require reliable and efficient video monitoring. With its discreet yet powerful design, the QND6021 ensures that your premises remain secure without compromising aesthetics.
Equipped with a 2-megapixel CMOS sensor, the QND6021 delivers full HD video (1920×1080 resolution) with exceptional clarity. Whether monitoring hallways, entrances, or customer interactions, this camera ensures precise identification of faces, objects, and other critical details. With its high-definition imaging capabilities, businesses can strengthen their security infrastructure, minimize risks, and improve incident response. The sharp, detailed footage enhances security investigations and provides valuable evidence when needed.
The Hanwha QND6021 features intelligent people counting technology, making it an essential tool for retail stores, offices, and hospitality environments. This built-in analytic feature accurately tracks foot traffic, allowing businesses to optimize staffing levels, enhance customer service, and make data-driven operational improvements. By leveraging real-time insights, organizations can maximize efficiency and boost overall performance. This feature is particularly useful for retailers looking to analyze visitor trends and improve sales strategies.
Inconsistent indoor lighting can impact video clarity, but the 120dB Wide Dynamic Range (WDR) in the QND6021 ensures balanced exposure in high-contrast scenes. Whether dealing with direct sunlight, glare, or dimly lit areas, this feature enhances image quality by preventing overexposed highlights and underexposed shadows, ensuring that every detail is captured accurately. This is especially beneficial for locations with large windows, glass doors, or fluctuating light conditions.
With a micro SD/SDHC/SDXC memory card slot, the QND6021 provides onboard storage, ensuring continuous recording even in the event of network failures. This feature enhances data redundancy, making sure that critical security footage is securely stored and accessible when needed. Businesses can rely on this local storage option for added protection and peace of mind. Having local backup ensures uninterrupted surveillance, even during network downtime, reducing potential security vulnerabilities.
The QND6021 is designed to integrate effortlessly with Video Management Systems (VMS) and Network Video Recorders (NVRs), ensuring smooth deployment and compatibility with existing security infrastructures. Its ONVIF compliance allows for flexible integration, making it a future-proof surveillance solution that adapts to evolving security needs. This compatibility ensures that businesses can scale their security systems without worrying about technical limitations or brand restrictions.
With its sleek and compact dome design, the Hanwha QND6021 blends seamlessly into any indoor setting while maintaining aesthetic appeal. Its intuitive interface and simple setup process make installation straightforward, allowing security teams to deploy and manage the camera with ease. This discreet yet powerful surveillance solution is perfect for businesses seeking reliable security without compromising interior design. Whether placed in a retail store, corporate office, or hospitality setting, the QND6021 ensures comprehensive coverage with a minimal footprint.
The Hanwha QND6021 is equipped with advanced security analytics, enhancing surveillance capabilities with real-time alerts and proactive monitoring. Motion detection instantly identifies and alerts security personnel of any unauthorized movement within its field of view. Tampering detection sends immediate notifications if the camera is obstructed, covered, or physically tampered with. Defocus detection ensures that image quality remains sharp by detecting and alerting users when the camera loses focus. These intelligent features provide enhanced security, reducing blind spots and potential security breaches.
The Hanwha QND6021 mini indoor dome camera is more than just a surveillance device—it is a powerful, intelligent, and future-ready security solution. Designed to deliver crystal-clear video, actionable business insights, and seamless system integration, this camera is perfect for organizations looking to enhance security, streamline operations, and improve overall efficiency. Whether for business security, loss prevention, or operational optimization, the QND6021 is a trusted investment in surveillance technology. By integrating the latest in smart surveillance, this camera not only safeguards your premises but also helps optimize business operations through data-driven insights.
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 4mm fixed lens
- 0.03Lux (Color), WDR (120dB)
- Max. 30fps@2MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | None |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.80W, typical 2.80W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
